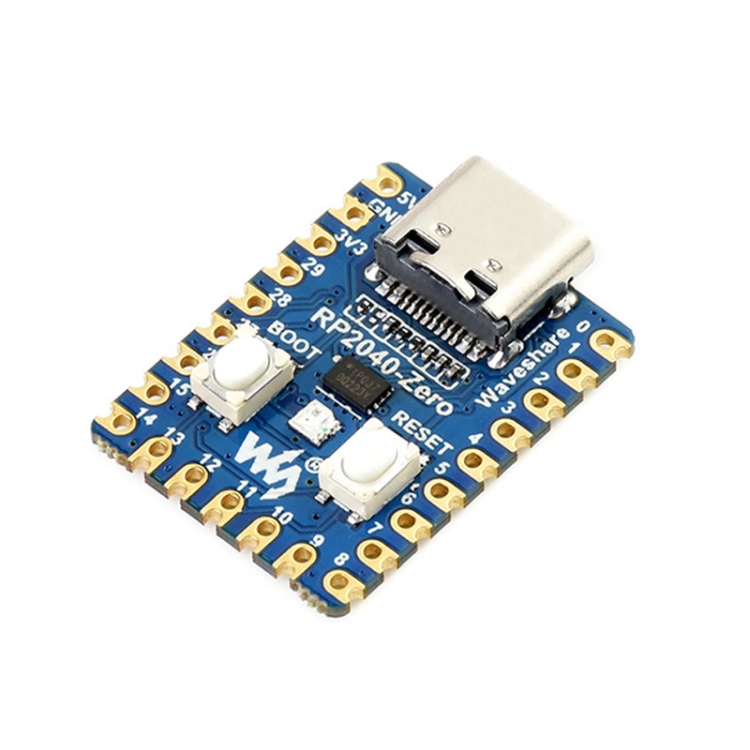

RP2040 Microcontroller Development Board

Overview

The RP2040 Microcontroller Development Board is engineered for versatility and performance, making it an ideal choice for developers and hobbyists alike. This board leverages the advanced capabilities of the RP2040 chip, designed by Raspberry Pi, to facilitate a wide range of applications in embedded systems.

Key Features

• Microcontroller Chip: Utilizes the RP2040 microcontroller chip from Raspberry Pi.
• Processor: Features a dual-core ARM Cortex M0+ processor with a clock speed reaching up to 133MHz.
• Memory: Comes with 264KB SRAM and 2MB on-chip Flash memory for efficient data handling.
• Design Flexibility: True stamp hole design allows direct soldering onto custom baseboards.
• USB Support: Compatible with USB1.1 as both host and device, enhancing connectivity options.
• Power Management: Supports low-power sleep and hibernation modes to conserve energy during idle periods.
• Storage Identification: Recognized as large-capacity storage via USB for easy program downloads through drag-and-drop functionality.
• GPIO Pins: Offers 29 GPIO pins (20 accessible via pin headers; others require soldering).
• Communication Interfaces:

– 2 SPI interfaces
– 2 I2C interfaces
– 2 UART interfaces

• Analog Capabilities:

– Four channels of high-resolution (12-bit) ADCs
– Sixteen controllable PWM channels

• Timing Precision: Equipped with an accurate on-chip clock and timer functionalities.
• Integrated Sensors & Libraries:

– Built-in temperature sensor
– On-chip accelerated floating-point library
– Eight programmable I/O (PIO) state machines for custom peripheral integration.

Specifications

Dimensions & Weight

Product Size: 23.5 x 18mm
Package Weight: Approximately 0.01kg / 0.03lb
Package Size: 8cm x 6cm x 2cm / 3.15in x 2.36in x 0.79in

Quantity per Carton: 540 units
Carton Weight: Approximately 6.50kg /14.33lb
Carton Size Dimensions :50cm x38cmx32cm/19.69in x14.96in x12.6in

Container Loading Capacity

For a standard shipping container (20GP): Up to236520 pieces can be loaded (438 cartons 540 pcs).
For larger containers (40HQ): Up to549720 pieces can be accommodated(1018 cartons 540 pcs).

This development board is perfect for those looking to create innovative projects or prototypes that require robust processing power combined with extensive connectivity options.
