Raspberry Pi 5 Expansion Board

Enhance Your Raspberry Pi Experience with Advanced Connectivity

This expansion board is specifically engineered for the Raspberry Pi 5, offering a seamless plug-and-play experience without the need for additional drivers. It simplifies your development process and enhances connectivity options, making it an essential tool for developers and tech enthusiasts.

• Driver-Free Operation: Designed to work effortlessly with Raspberry Pi 5; no drivers required.
• Integrated EEPROM Storage: Automatically loads board configurations, streamlining your development workflow.
• Power Supply Support: Compatible with the Raspberry Pi’s 40PIN GPIO interface for reliable power supply.
• MiniPCIe Interface: Features an onboard MiniPCIe interface that supports SIM7600G-H-PCIE and EG25-G mPCIe series 4G modules.
• Direct Connection Capability: Connects directly to the Raspberry Pi 5 via a convenient 16PIN cable through its PCIe interface.
• Dual USB Ports: Offers a PCIe to dual USB 3.2 Gen1 high-speed interface, allowing easy access to multiple peripheral devices.
• Gigabit Ethernet Chip: Equipped with the RT8153B high-performance Gigabit Ethernet chip for superior network connectivity.
• Multi-System Support: Compatible with various operating systems including Raspberry Pi OS, Ubuntu, and OpenWRT.
• Global Frequency Band Support: Supports global frequency bands for seamless connectivity across different networks (4G/3G/2G).
• GNSS Positioning Capability: Integrated GNSS positioning support enhances location-based applications.
• Real-Time Power Monitoring: Onboard power monitoring chip provides real-time control over power status.

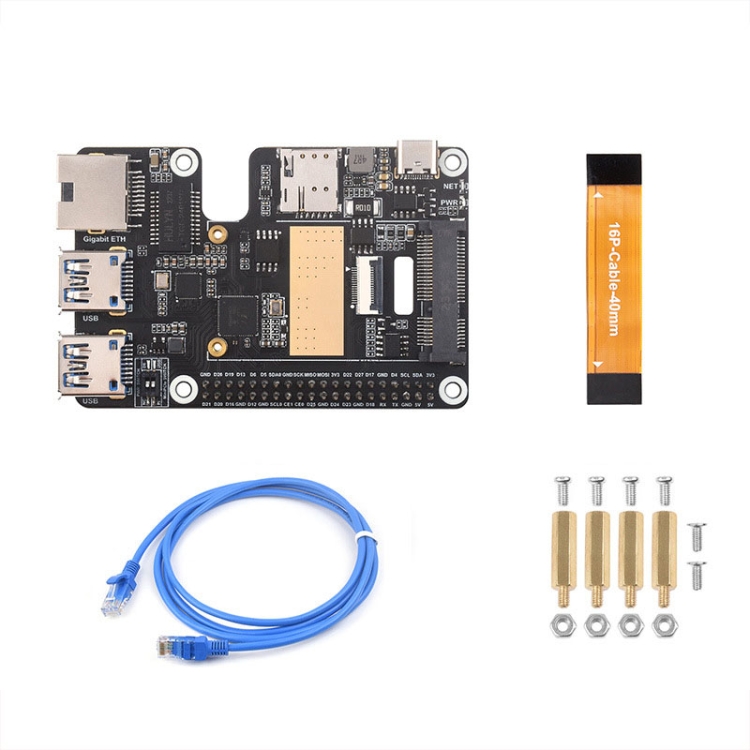

Packing List

Included in your purchase:

• Expansion board x 1
• Cable x 1
• Network cable x 1
• Screw package x 1

Specifications

| Feature | Details |
|————————|——————————————-|
| Package Weight | One Package Weight – 0.13kgs / 0.30lb |
| Package Size | Dimensions – 16cm 10cm 3cm |
| Quantity per Carton | Total of -96 units |
| Carton Weight | Total weight -13.60kgs /29.98lb |
| Carton Size | Dimensions -34cm 32cm 50cm |

Loading Container Capacity:
20GP: Holds up to 47040 pcs (490 cartons)
40HQ: Holds up to 109152 pcs (1137 cartons)

This expansion board is ideal for those looking to maximize their Raspberry Pi capabilities by adding advanced networking features and enhanced peripheral connections.
