High-Precision Wall-Mounted Decibel Meter for Accurate Noise Level Monitoring

$111.85

Accurate noise levels at a glance! Wall-mounted decibel meter. Precise monitoring, TA653/TA654 options. Get yours now!

Select delivery location

Please, activate Wishlist option to use this widget.
Please, activate Compare option to use this widget.
SKU: TBD0603673001 Categories: , , Tags: , Brand:
High-Precision Wall-Mounted De...

$111.85

Select delivery location

Select options

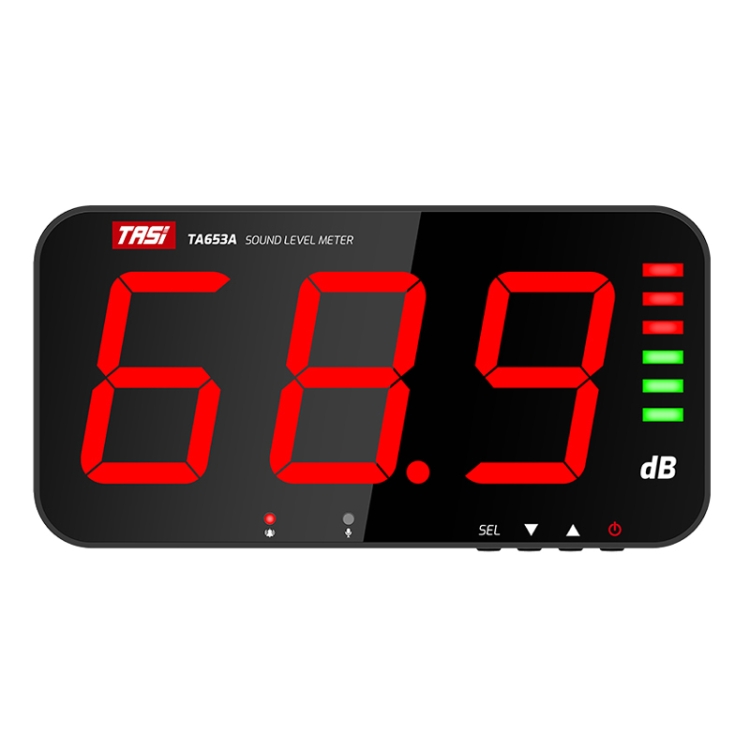

High-Precision Sound Level Meter

Overview

The High-Precision Sound Level Meter is designed for accurate sound measurement, making it an essential tool for professionals in acoustics, construction, and environmental monitoring. With its advanced features and user-friendly design, this device ensures precise readings in various settings.

Key Features:

  • Measurement Range: 30dB to 130dB
  • Accuracy: Approximately ±1.5dB (based on a standard sound source of 94dB at 1KHz)
  • Resolution:

– 0.1dB for levels below 100dB
– 1dB for levels above

  • Frequency Response: Ranges from 31.5Hz to 8.5KHz
  • Sampling Rate: Measures twice per second
  • Sensor Type: Equipped with a high-sensitivity, external TA654A condenser microphone sensor (6mm)

Display & Design:

  • Display Mode: Features a large LED digital display measuring four inches.
  • Alarm Output: Provides a high-level alarm output at 12V.

Operational Specifications:

  • Operating Environment: Functions optimally between temperatures of 0°C to +40°C with up to 80% relative humidity; suitable for indoor altitudes below 2000m.
  • Storage Conditions: Can be stored in environments ranging from -10°C to +60°C with up to 70% relative humidity.

Power Supply:

  • Operates on DC input of USB direct plug (5V/1A).

Physical Attributes:

  • Dimensions: Approximately (32.3 times 17.3 times4) cm
  • Weight: Roughly (980g)

Additional Functionalities:

  1. Highly sensitive microphone ensuring rapid response and accuracy.
  2. Large screen display enhances visibility and ease of reading measurements.
  3. Versatile placement options including wall mounting or desktop use due to the hidden bracket design.
  4. Customizable upper limit alarm settings that trigger alerts when sound exceeds predefined thresholds; adjustable alert duration between (65) and (120) seconds.
  5. Enhanced responsiveness through dual ventilation holes located on the back panel.

Technical Specifications:

| Specification | Details |
|———————–|———————————-|
| Package Weight | (1.70kg /3.74lb) |
| Package Size | (40cm times24cm times8cm) |
| Quantity per Carton | (10 pcs) |
| Carton Weight | (17kg /37.48lb) |
| Carton Size | (45cm times42cm times52cm) |

This sound level meter is ideal for those needing precise acoustic measurements in various environments such as construction sites or noise monitoring applications.
