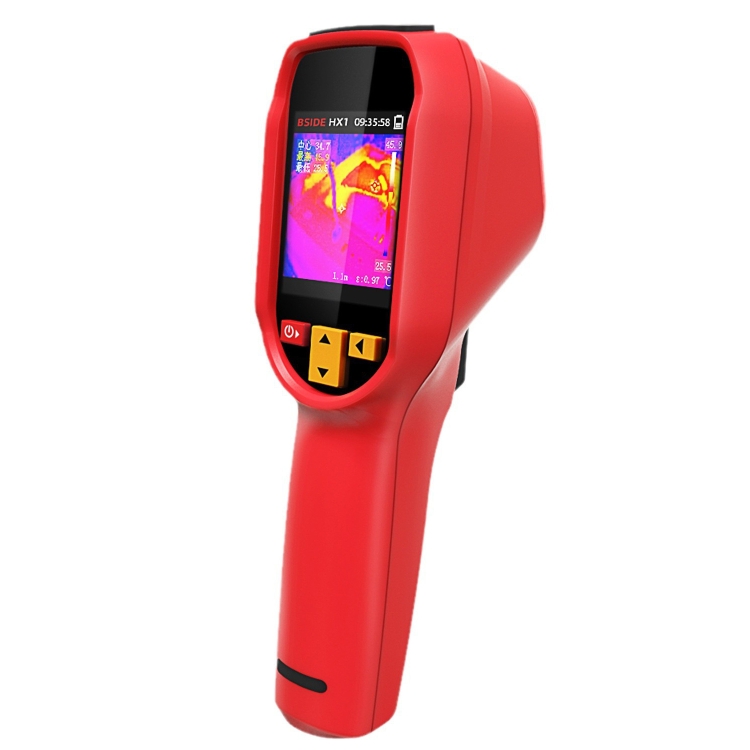

Infrared Thermal Imaging Camera

Overview

The Infrared Thermal Imaging Camera is designed for precise temperature measurement and thermal imaging, making it an essential tool for various applications such as building inspections, electrical maintenance, and HVAC diagnostics. With its advanced features and user-friendly interface, this device provides accurate thermal readings in real-time.

Key Features

• Sensor Technology: Utilizes a vanadium oxide (VOx) microbolometer sensor.
• Response Band: Operates within the 8-14 µm range.
• Resolution: Offers a thermal image resolution of 240 x 240 pixels.
• Temperature Sensitivity: Achieves a noise equivalent temperature difference of within 60 mK at 25°C (F1.0).
• Field of View (FOV): Provides a horizontal FOV of 50.0 degrees and vertical FOV of 50 degrees; diagonal FOV is approximately 72.1 degrees.
• Spatial Resolution: Delivers spatial resolution at 8.89 mrad.
• Frame Rate: Capable of capturing images at a frame rate of up to 25Hz.

Temperature Measurement Specifications

• Focal Length for Imaging Lens: Fixed at 1.35 mm with adjustable focal length for temperature measurement from 0.3m to 3m.
• Measurement Range & Accuracy:

– Temperature range from -20°C to +550°C
– Accuracy within ±2°C or ±2% (whichever is larger).
– Measurement units include Celsius, Fahrenheit, and Kelvin with a resolution of up to ±0.1°C.

Display & User Interface

• Equipped with a clear and vibrant 2.4-inch TFT LCD display featuring a resolution of 320 x 240 pixels.
• Supports laser indication for precise targeting during measurements.

Additional Functionalities

• Built-in memory can store up to 30,000 images in BMP format; focus-free operation simplifies usage across various scenarios.

Battery & Charging Details

• Powered by a rechargeable lithium battery (3.7V/2500mAh) that lasts over 7 hours on full charge under standard conditions; charging time is less than 3 hours using standard USB-C charging voltage/current specifications (5V/2A).

Why Choose This Thermal Camera?

This infrared thermal camera stands out due to its high-resolution imaging capabilities combined with extensive temperature measurement ranges suitable for professionals in construction, electrical work, or HVAC systems who require reliable data quickly and efficiently.

With features like customizable color palettes—ranging from white hot to rainbow—and an intuitive alarm system that alerts users when temperatures exceed set thresholds, this device enhances safety while providing critical insights into potential issues before they escalate.

Whether you are conducting routine inspections or troubleshooting complex systems, this camera offers the precision needed for effective monitoring and analysis.
