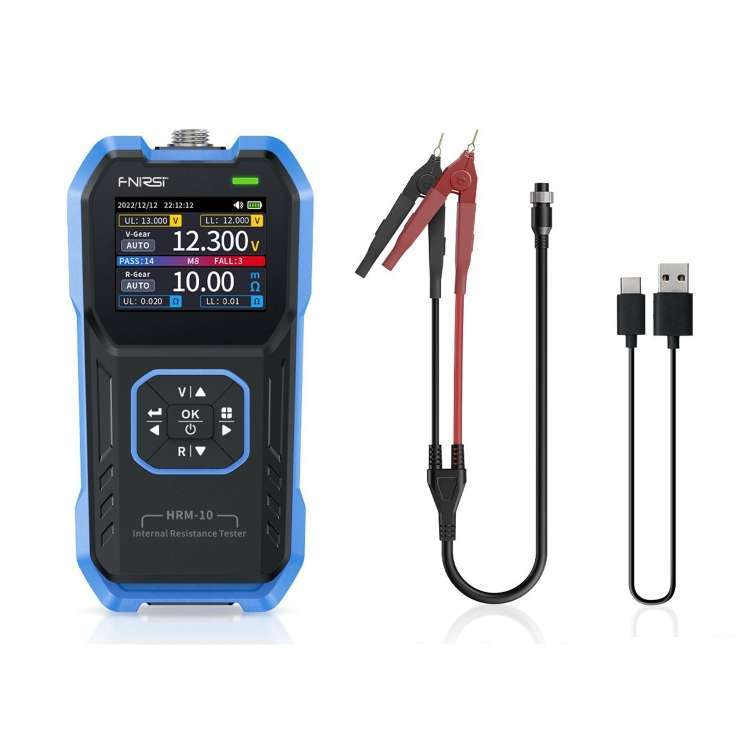

Advanced Voltage and Resistance Tester

Optimize Your Testing Experience with Precision and Efficiency

This advanced voltage and resistance tester is designed for professionals seeking accuracy in their measurements. With a comprehensive range of features, it ensures reliable performance for various applications, making it an essential tool for battery testing, electrical diagnostics, and more.

• Voltage Measurement:

– Range: 0-100V (DC)
– Modes: Automatic, selectable at 1V, 10V, or 100V

• Resistance Measurement:

– Range: Up to 200 ohms
– Modes: Automatic selection including options for measuring as low as 20 milliohms up to a maximum of 200 ohms

• Signal Frequency:

– Instrument test signal frequency set at AC 1kHz

• Charging Interface:

– Equipped with a TYPE-C interface (5V/1A) for convenient charging

• Battery Specifications:

– Built-in rechargeable lithium battery with a capacity of 1000mAh

• Design Features:

– Integrated folding bracket provides stable support
– Compact design includes back hanging hole gourd nail feature
– Anti-slip silicone base prevents slipping during use on desktops

• User-Friendly Functions:

– Customizable automatic shutdown mode or specific timer settings enhance safety and prolong device lifespan
– One-click pause function allows data retention during tests

• Measurement Accuracy Enhancements:

– Utilizes a customized Kelvin four-wire connection method to eliminate wire resistance interference, ensuring precise readings.

• Efficiency Boosting Capabilities:

– Eight pre-set voltage resistance values facilitate quick screening of high-quality batteries or pinpointing issues in problem batteries.

• Display Quality:

– TFT high-definition color screen offers clear visibility of functional data for faster recognition.

Product Specifications:

| Specification | Details |
|———————–|———————————-|
| Size | Dimensions: 158.7 x 80.5 x 28.4 mm |
| Weight | Approx. weight: 225g |
| Package Weight | One package weight: ~0.45 kg |
| Package Size | Dimensions: ~22cm x ~14cm x ~9cm|
| Carton Quantity | Contains up to 15 units |
| Carton Weight | Total carton weight: ~23.80 kg |
| Carton Size | Dimensions per carton: ~64cm x ~39cm x ~46cm |

This tester is ideal for technicians who require accurate voltage and resistance measurements quickly without compromising on quality or reliability.
