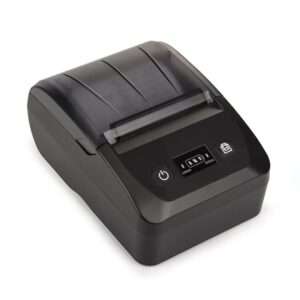

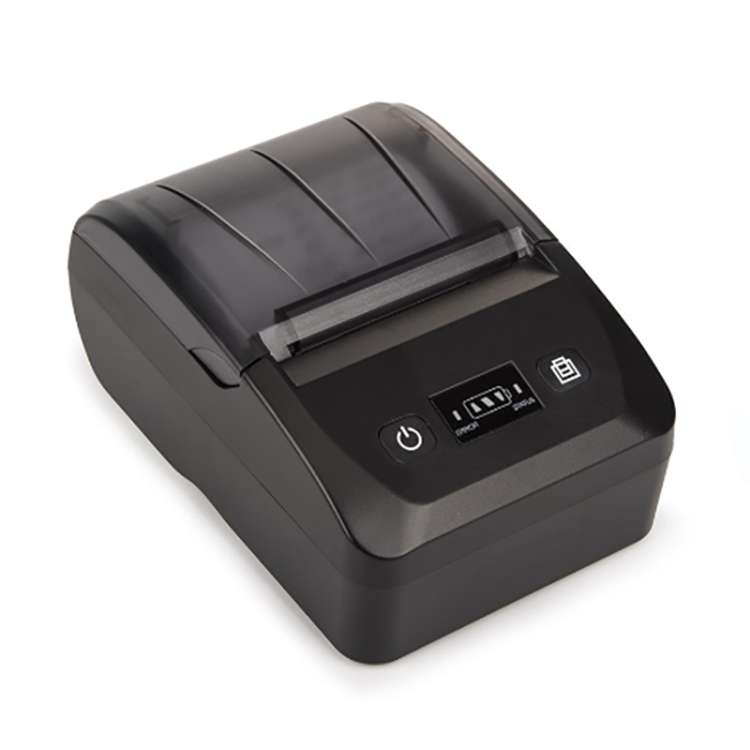

Compact Thermal Printer

Efficient and Versatile Printing Solution for Your Business Needs

This compact thermal printer is designed to meet the demands of various printing tasks, making it an ideal choice for businesses that require quick and reliable label or receipt printing. With its advanced features, this printer ensures high-quality output while maintaining user-friendly operation.

• Printing Technology: Utilizes thermal line printing for efficient operation.
• Speed: Capable of printing at a speed range of 50-80mm/s.
• Barcode Compatibility: Supports multiple barcode formats including UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR, CODE128, and CODE93.
• Connectivity Options: Offers Bluetooth and optional USB interface for versatile connectivity.
• Resolution: Delivers clear prints with a resolution of 203dpi.
• Effective Print Width: Maximum print width of 48mm to accommodate various label sizes.
• Paper Specifications:

– Compatible paper width is 58mm
– Paper thickness ranges from 60 to 80μm

• Font Support: Includes font sizes of 9×17 and 12×24 with support for multiple code pages.
• Graphics Printing Capability: Allows bitmap printing with customizable density; supports bitmaps up to 40K each (totaling up to 64K).

Power Specifications

• Charger Requirements:

– Uses a standard adapter rated at 5V/1A or can connect via USB (5V/500mA).

Battery Performance

• Equipped with a robust battery capacity of 2000mAh/8.4V that allows extensive usage:

– Fully charged distance can reach between 100–200 meters (at ≤12.5% density) or 80–100 meters (at ≤25% density).

Environmental Conditions

• Operates effectively in temperatures ranging from -10°C to +50°C and humidity levels between 20%-85%.

Driver Compatibility

Compatible with Windows XP through Windows10 systems; utilizes ESC/POS command set emulation.

Product Dimensions & Packaging Details

| Feature | Specification |
|———————–|—————————————-|
| Package Weight | Approximately 0.23 kg /0.52 lb |
| Package Size | Measures 15cm x10cm x6cm |
| Quantity per Carton | Contains 90 units per carton |
| Carton Weight | Total weight is approximately 21.70 kg /47.84 lb|
| Carton Size | Dimensions are 52cm x47cm x38cm |

Loading Capacity

For bulk orders:
– A standard container can hold up to
– 20GP : Approximately 25830 pcs
– 40HQ : Approximately 59940 pcs

This thermal printer stands out as an essential tool for businesses looking for efficiency in their operations while ensuring high-quality print outputs tailored specifically for labels and receipts.
