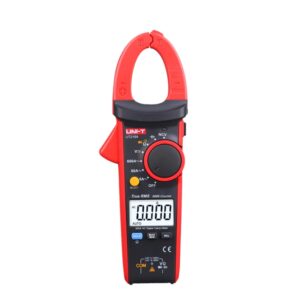

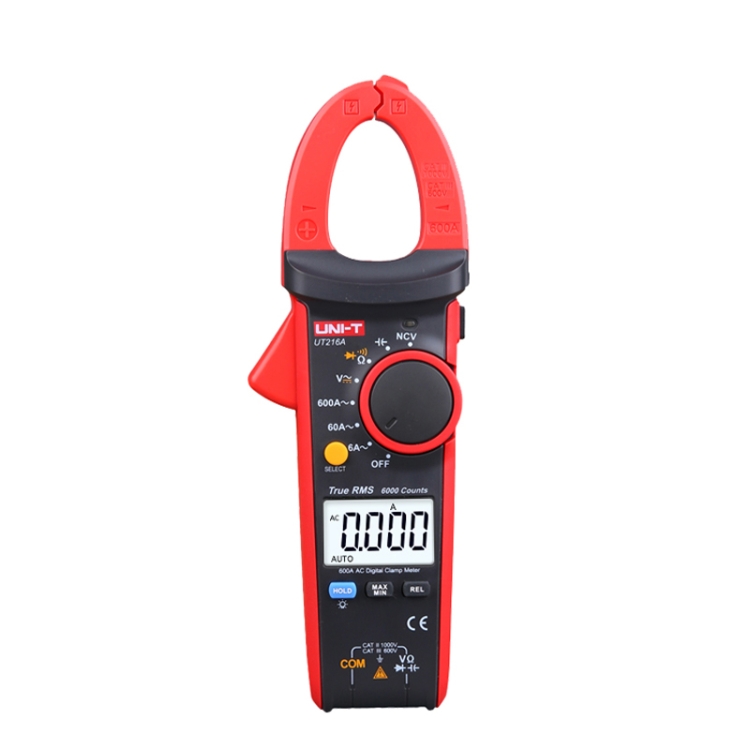

UT216A Digital Clamp Meter
Overview
The UT216A Digital Clamp Meter is an essential tool for professionals and DIY enthusiasts alike, designed to measure electrical parameters with precision. This versatile device is particularly useful for electricians, technicians, and anyone involved in electrical maintenance or troubleshooting.
Key Features
- Diode Measurement: Accurately test diodes to ensure proper functionality.
- Low Voltage Display: Readings are clear even at low voltage levels.
- On-Off Buzzer: Alerts users when a measurement is complete or if there’s an issue detected.
- Data Retention: Holds the last reading on the display for easy reference.
- Input Resistance Measurement: Provides insights into circuit integrity.
- Automatic Shut-down: Conserves battery life by powering off after inactivity.
- Screen Backlight: Facilitates visibility in low-light conditions.
- Relative Measurement Functionality: Allows comparison of measurements against a reference value.
- Non-contact Voltage (NCV) Test Pen: Safely detects AC voltage without direct contact with live wires.
- True RMS Capability: Ensures accurate readings of both AC and DC currents regardless of waveform shape.
- Maximum/Minimum Value Tracking: Records peak values during measurements for comprehensive analysis.
- Integrated Flashlight Lighting: Illuminates work areas when needed.
Technical Specifications
Electrical Measurements:
– AC Voltage Range: 0.001V to 750V
– DC Voltage Range: 0.0001V to 1000V
– AC Current Range: 0.001A to 600A
– Resistance Measurement Range: 0.1Ω to 60MΩ
– Capacitance Measurement Range: From as low as 0.01nF up to nearly 60mF
Physical Attributes:
– Jaw Opening Size : Up to 30mm
– Dimensions : 220mm x 75mm x 40mm
– Weight : Approximately 280g
Power Supply:
– Operates on three AAA batteries (not included).
Packaging Includes:
Standard configuration comes with a packing box, user manual, test pen, and cloth bag.
