5A High-Power DC-DC Boost Converter Module for Enhanced Current Supply and Efficiency

Name: 5A High-Power DC-DC Boost Converter Module for Enhanced Current Supply and Efficiency
SKU: TBD06055412
Price: 9.17 USD
Availability: InStock

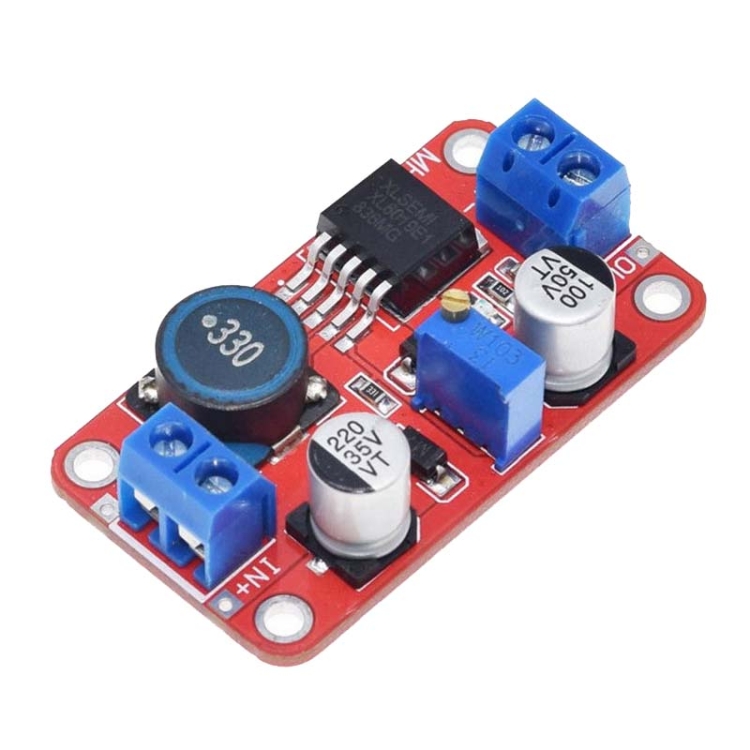

High-Efficiency Boost Converter Module

Optimize your power supply solutions with this advanced boost converter module, designed for a wide range of applications. This device is perfect for users needing to adjust voltage levels efficiently and reliably.

Product Features:

Integrated Design: The module features a fully integrated constant voltage output program with internal MOSFETs, minimizing the need for additional components and reducing overall system costs.
Versatile Input Voltage Range: Accepts input voltages from 3V to 35V, accommodating various power sources.
Adjustable Output Voltage: Capable of delivering an adjustable output voltage up to 40V, making it suitable for diverse electronic devices.
Robust Protection Mechanisms: Equipped with built-in over-temperature and over-current protection circuits, ensuring high reliability during operation.
High Conversion Efficiency: Achieves conversion efficiencies exceeding 90%, facilitating effective thermal management in your projects.
Standardized Packaging: Ideal for boosting applications within a power range of up to 30W.

Usage Instructions:

Connect the module to a compatible power supply (3V – 35V) and observe the operational indicator light confirming normal function.
Utilize the blue potentiometer knob—turn counterclockwise to boost voltage or clockwise to buck it—while monitoring output voltage with a multimeter until desired levels are reached.

Technical Specifications:

Nature of Module: Non-isolated boost
Rectification Mode: Non-synchronous rectification
Input Voltage Range: Recommended between 3V – 35V; maximum limit at 40V
Output Voltage Range: Adjustable from 5V – 45V; recommended maximum at 40V
Input Current Capacity: Up to 5A (recommended usage at or below 3A)
Maximum Conversion Efficiency: Up to 94%
Switching Frequency Rate: Approximately 220KHz
Output Ripple Voltage Stability: Less than ±100mV
Load Regulation Accuracy Rate: ±0.5%
Operating Temperature Limits: From -40°C up to +150°C; optimal use between -20°C and +85°C
Reverse Connection Protection Rating at input level up to +40 volts

Important Notes:

This vehicle voltage regulator allows easy connection; simply attach it to your power source and adjust as needed for charging devices like cell phones or MP4 players within the specified output range (5–30 volts).
For prolonged use, maintain current below approximately 2.5A while considering heat dissipation requirements (10W+ outputs).
Ideal for powering electronic equipment requiring variable voltages from 5–35 volts, simplifying adjustments based on available supplies.

Package Weight

One Package Weight

Weight: 30g / .07lb

One Package Size < td s t y l e='borde r=n one;padd ing =s p x;'>
Size: 7cm x .05cm x .03cm / .76inch x .97inch x .18inch

Qty per Carton< /t d >
Quantity: 330

< div st yle=borde r-bott om=dashed#E O E O E O E O >

Carton Weight< /t d >
Weight:11kg/24lb
< div st yle=b orde rb ottom=dashed#E OE OE OE OE OE >

Carton Size< /t d >
Size:37cmx35cmx32 cm/14 inchx13 inchx12 inch
< di v class=paramsprop last_prop=””>
< table bo rd er ="o" styl=e ="m arg in-bo ttom :o ">
< tr>
< td styl=e ="bord er:no ne ;pa dding :spx ;wi dt h :25 % ">Loading Container< /t d >
< td styl=e ="bord er:no ne ;pa dding :spx;">
“20GP”: “643 cartons ×330 pcs =212190 pcs
” “40HQ”: “1493 cartons ×330 pcs =492690 pcs
”
